YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming

Descrizione di prodotto

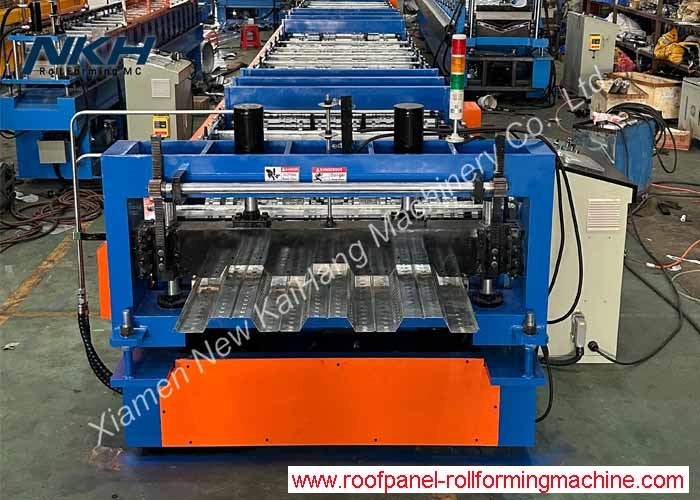

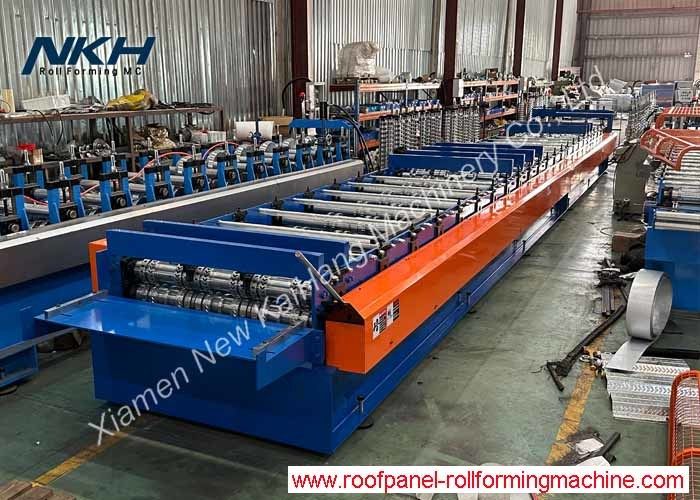

YX51-316-1000 Decking Roll Forming Machine

Description/Technical Parameter of Complete Line:

Quick Detail:

1. Thickness : 0.7-0.9mm
2. Material : Galvanized sheets, G350
3. Material weight : 10tons
4. Coil inner diameter : 510mm+/-+30mm
5. Driven way: by driven motor
6. Cutting way: by hydraulic group
7. Cutting tolerance : ±2mm

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.
